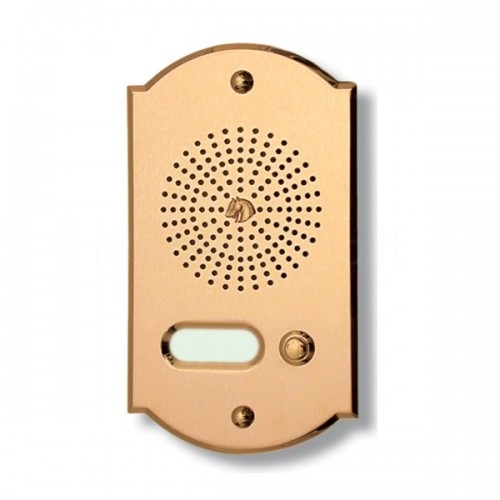

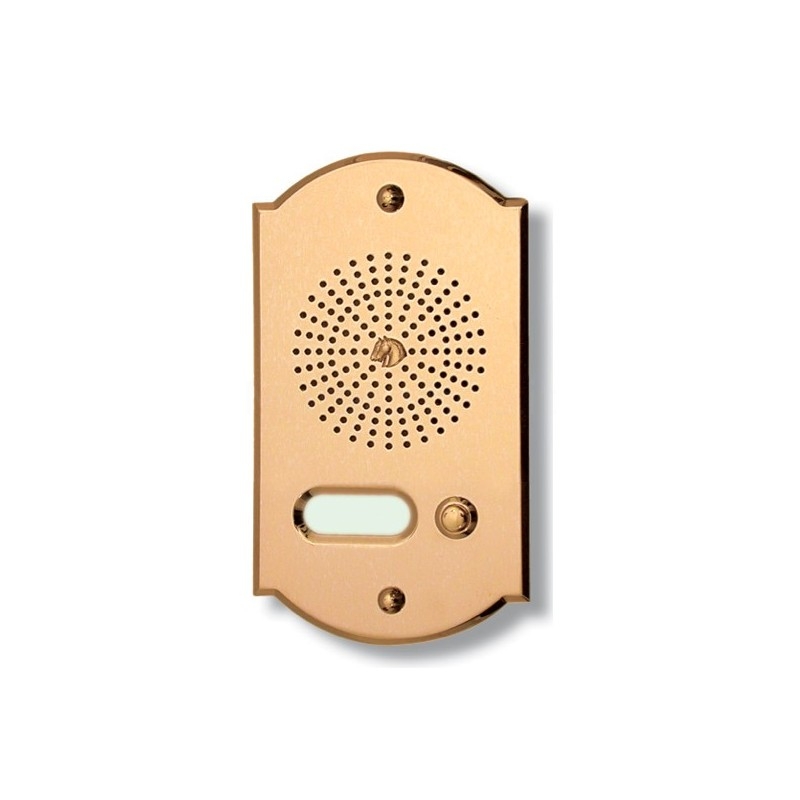

copy of PUSH BUTTON PANEL FOR INTERCOM 1 NAME MOD. 1PLMORO/CPT POLISHED BRASS TREATED CPT

ONE-CALL TREATED BRASS HANDSET.

Internal and external audio kits NOT included.

Push button panel for analog intercom, 12V powered buttons.
MATERIAL: Pushbutton panel made of 3 mm thick watchmaker brass plate, screws, button and crest made of titanium-treated brass. Brass remains mirror polished over time without oxidizing.

EQUIPMENT: Brass pushbutton and galvanized flush-mounted box, milk-white plastic name tag to allow backlighting, a name tag engraving service is available if desired by clicking HERE.

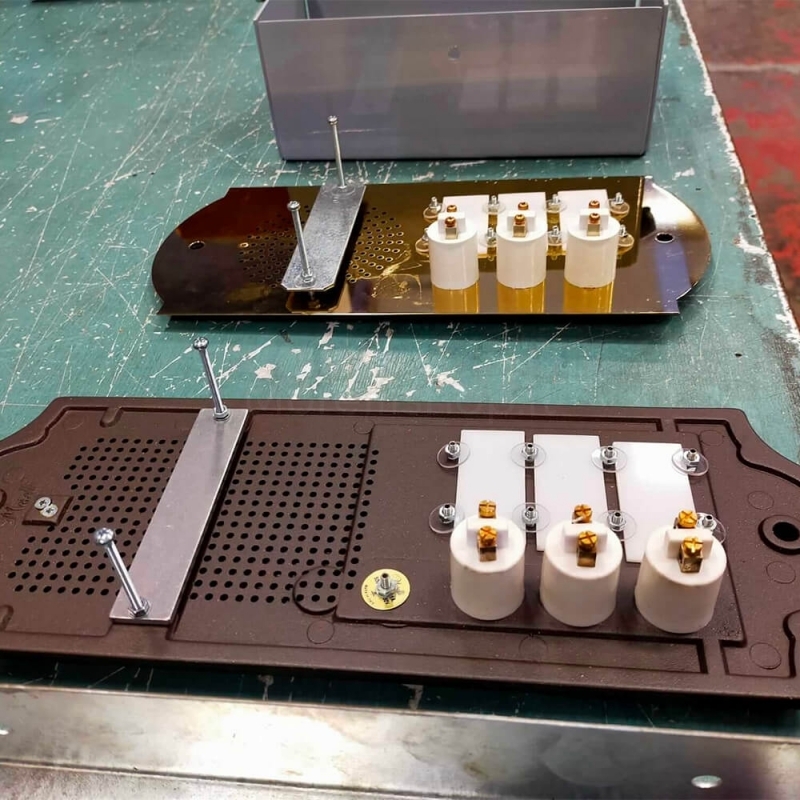

FIXING: The handset is fixed to the wall using burglar-resistant brass screws (included). Inside, the intercom is attached to the perforated grid with a special bracket provided.
A template or perforated spacer bar is also supplied to enable the correct position of the holes for fixing the handset to the flush-mounted box to be maintained during installation.

EXCLUDED: All the electrical part, installation and internal intercom kit, which remain the responsibility of the installing electrician.

TAILOR-MADE: It is possible to make custom push-button panels, to receive a quote or more information we invite you to view the appropriate by clicking here: CUSTOM PUSH BUTTON PANELS.

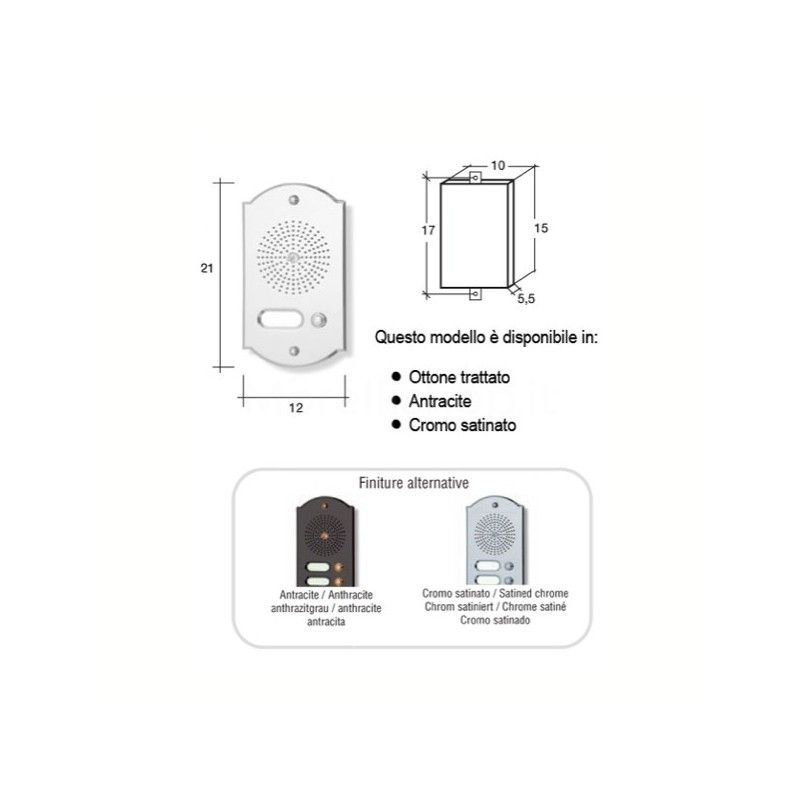

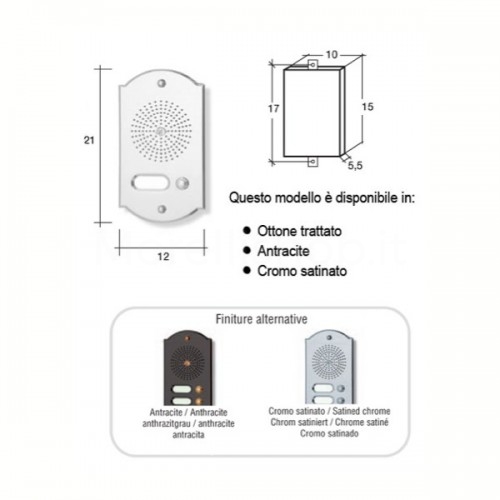

DIMENSIONS: click on the additional photo to see the dimensioned sheet.
